Part number: 13-1A50
OEM cross reference: N21010101
Part description: AIR BEARING MOTOR UNIT (B1)
OEM REPLACEMENT
| OEM | APL-5080/4 |
| OEM | N21010101 |
| SERIES | – |
| OEM | LIGHT BLUE |

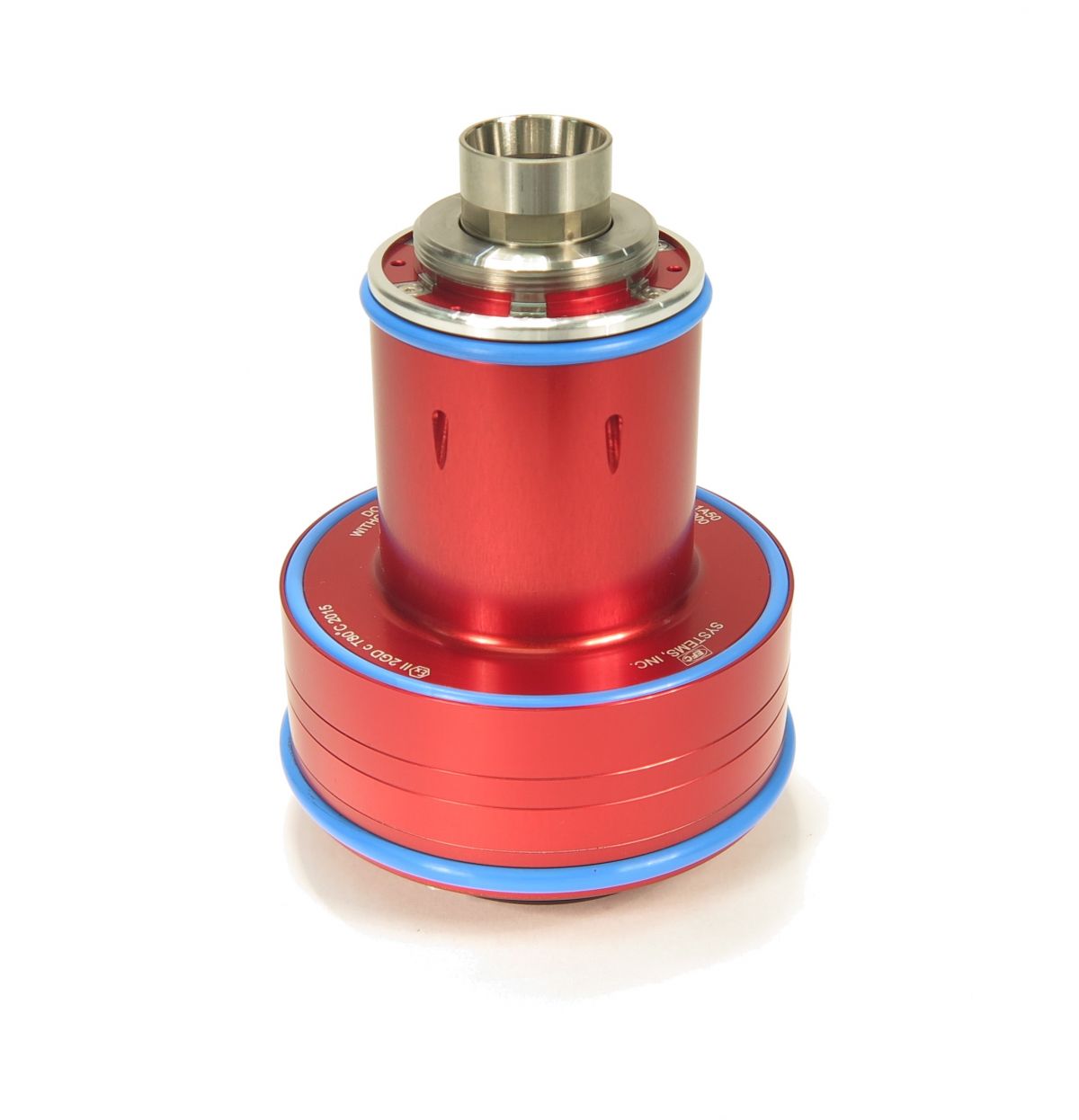

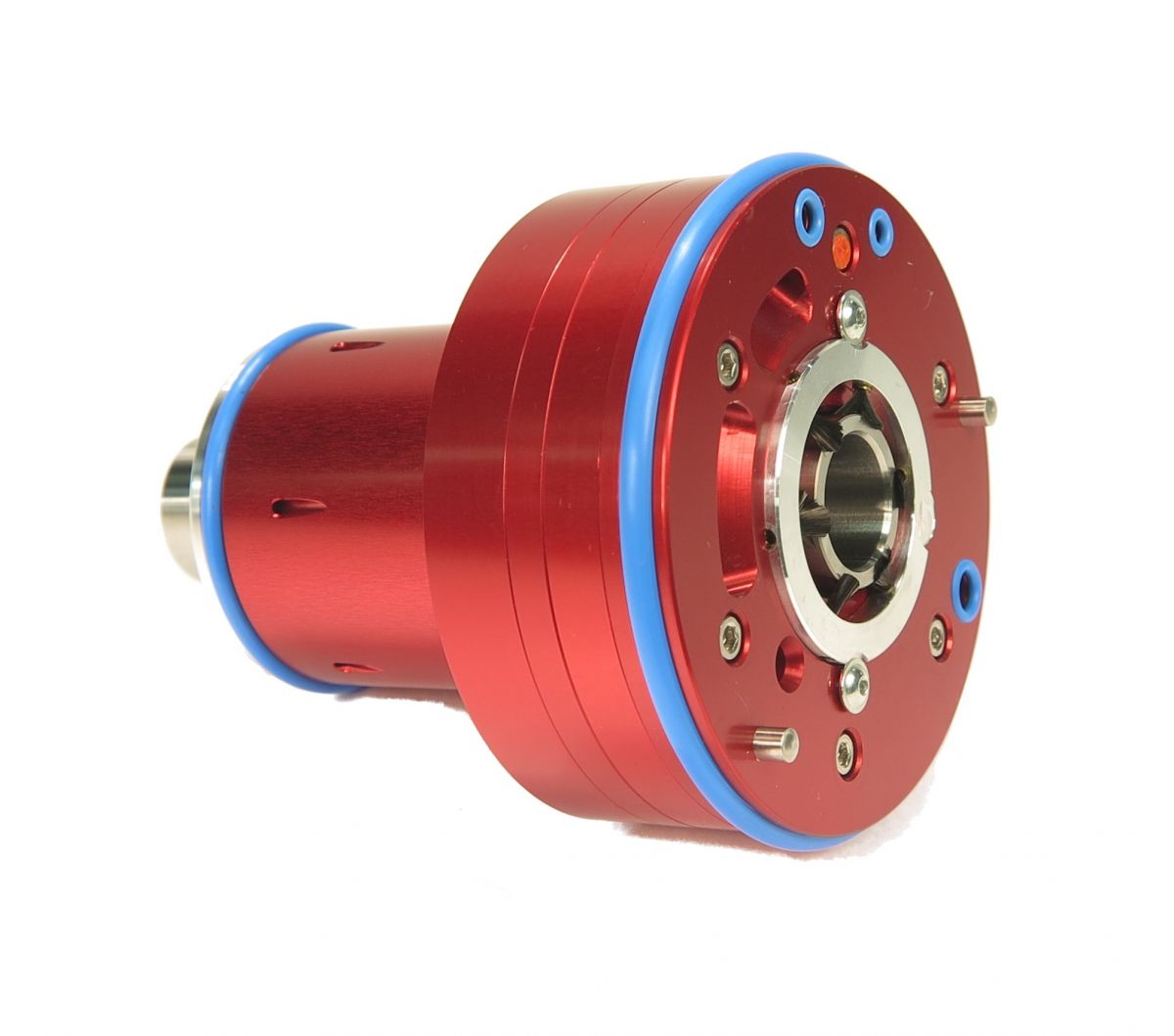

The 13-1A50 is an air bearing turbine used to drive paint atomizing bell cups at very high rotational speeds (on the order of 60,000 rpm). Utilizing carbon bearing technology, the housing of the motor is constructed of high strength aircraft grade aluminum. All other components are constructed of stainless steels or perflouroelastomeric materials.
TECHNICAL SPECS

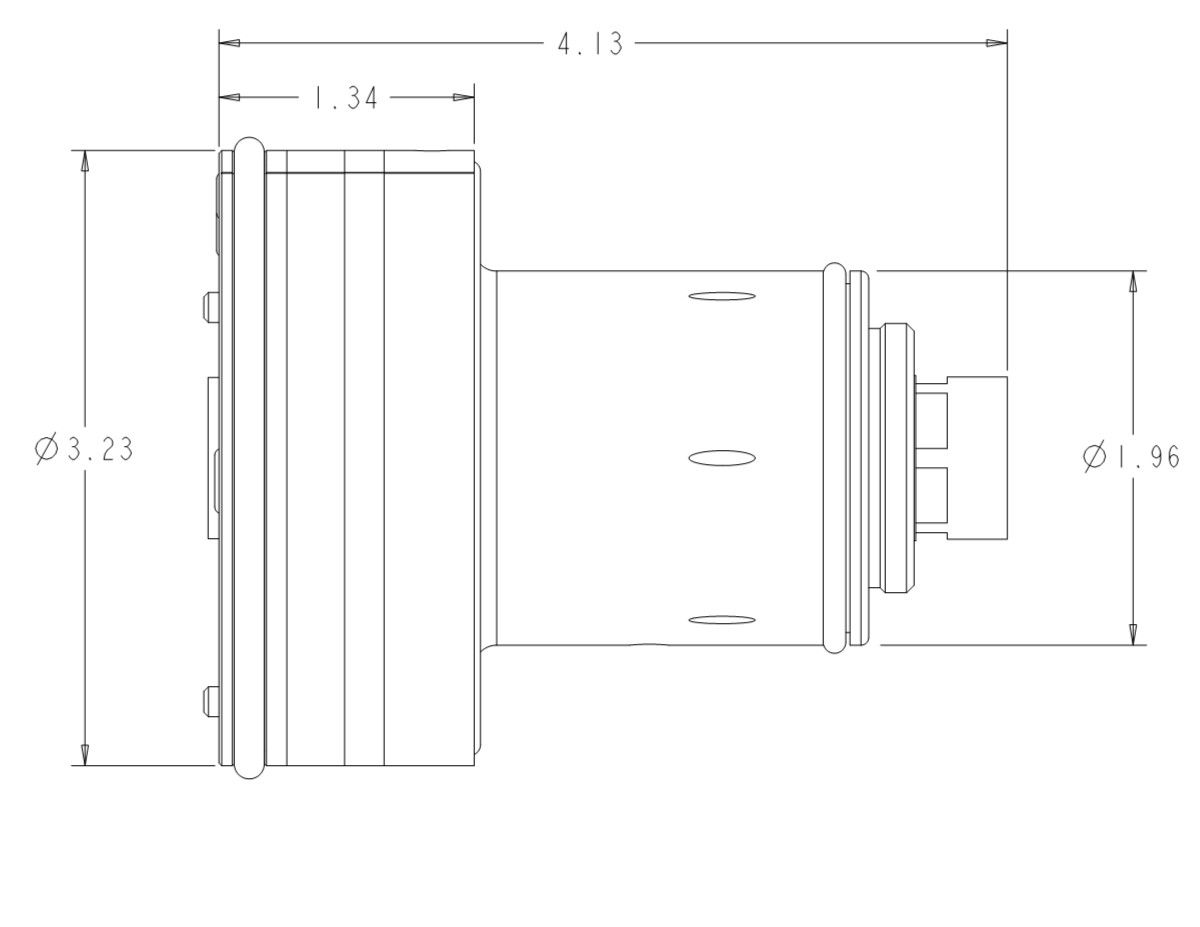

| Dimensions | 105mm length x 82mm diameter |
Available with a brush ring installed as EFC Part Number: 13-3A50
