Part number: 18-1A53
OEM cross reference: 2C0683

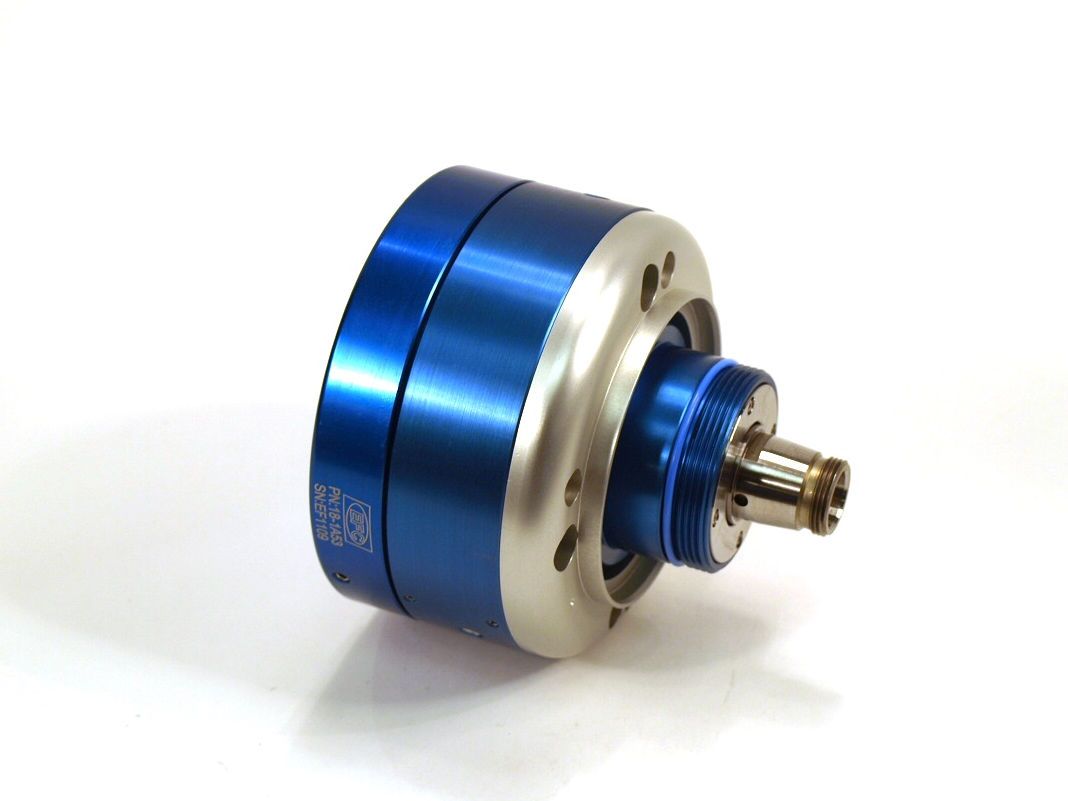

Part description: AIR BEARING TURBINE, RB1000
| SERIES | RB1000 |
| OEM | 2C0683 |
| OEM | NAVY BLUE |

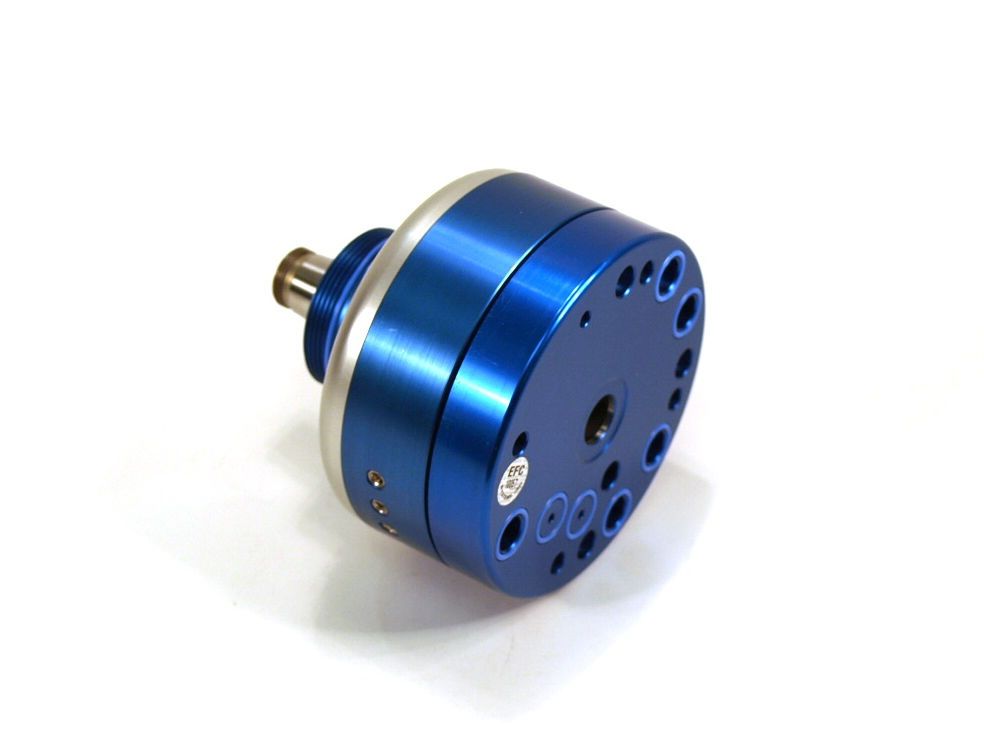

The motor is of the orifice bearing type that allows the shaft/flywheel assembly to “float” frictionless on a thin film of air. Drive air (DA), brake air (BR), turbine exhaust (EX) as well as the bearing air (BE) are supplied to the motor assembly via the back plate.
All air supplied to the motor should be clean, dry and filtered to 5 micron. It is recommended that Teflon® tape not be used on any of the fittings leading to the back plate, because of possible bearing air contamination.
Bearing Air at 90 psi minimum must be supplied at all times during motor operation. It is not advisable to rotate the shaft of the motor assembly by hand without a bearing air supply.
TECHNICAL SPECIFICATIONS

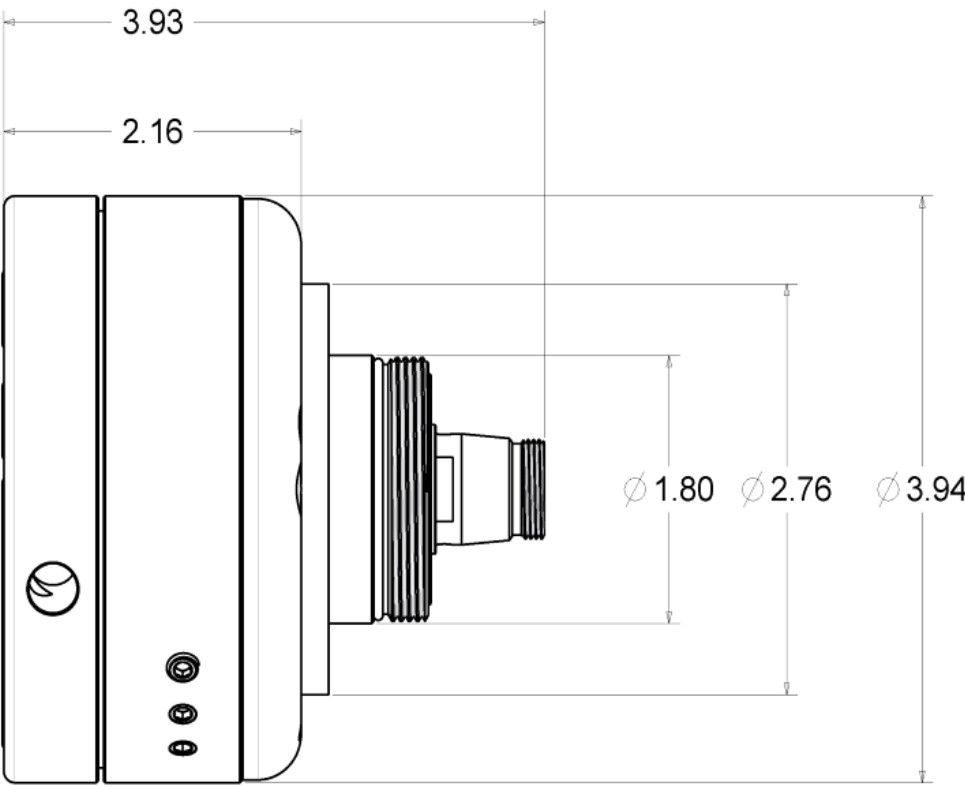

| DIMENSIONS | See Diagram Below |
| WEIGHT | 2.3 lbs |
| MATERIALS | Aircraft Grade Aluminum |
| Stainless Steel | |
| Carbon Orifice Bearings | |
| TEKREZ® Chemically Resistant O-Rings |
